How to Make a Popsicle Stick Catapult

Popsicle stick catapult is a fun activity which doesn’t demand much of your effort or time but turns out to be a great Science fair project idea for kids. Though the experiment is simple, when young minds are at it, they might need adult supervision while hurling heavy objects.

Popsicle Stick Catapult

Popsicle Stick Catapult

Homemade Catapult out of Popsicle Sticks

Materials Needed

  • 5 popsicle sticks
  • 4 rubber bands
  • A small container bowl, for example, a cut Kinder Surprise container
  • Aluminium or tin foil
  • Hot glue

Instructions

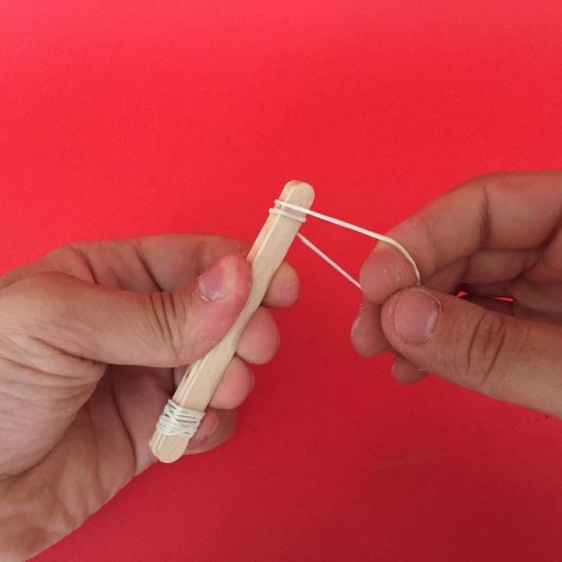

  1. Stack 3 popsicle sticks, one on top of another and tie the bunch together with rubber bands on either end.

Popsicle Stick Catapult Picture 1

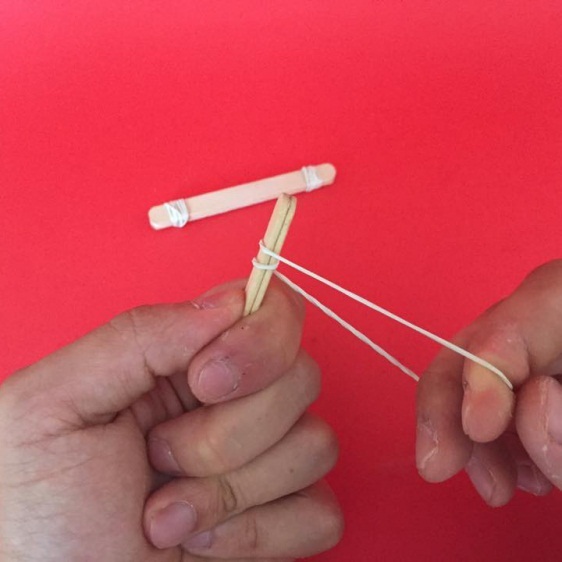

  1. Repeat the first step with two more popsicle sticks, but this time, tie them together using just a single rubber band near one end.



Popsicle Stick Catapult Picture 2

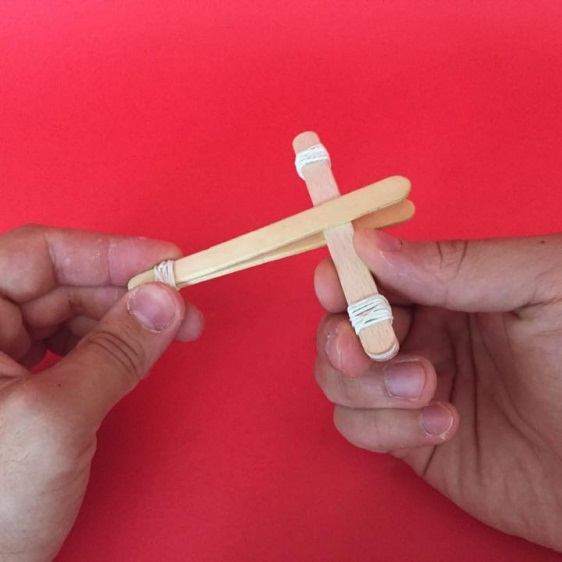

  1. Pull the pair of popsicle sticks slightly apart from each other and place the larger bundle of sticks in between them.

Popsicle Stick Catapult Picture 3

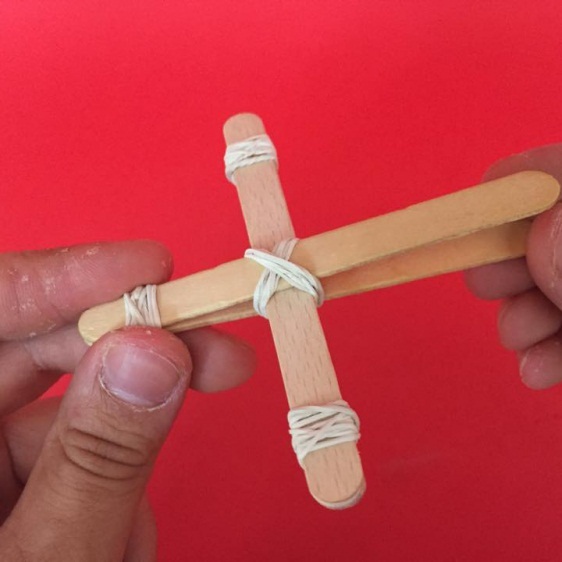

  1. With the help of another rubber band assemble the entire arrangement together. The ideal place to tie the rubber band would be at 1/3rd of the length of the popsicle sticks.

Popsicle Stick Catapult Picture 4

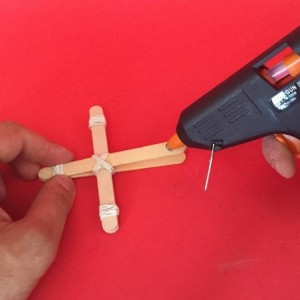

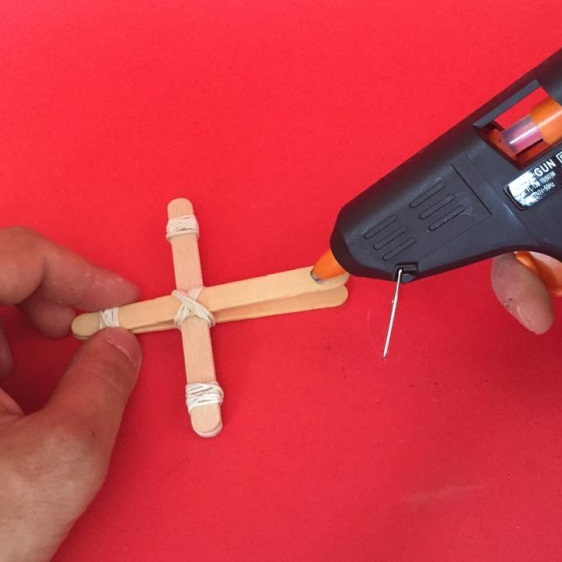

  1. Put hot glue over the topmost popsicle stick, away from the rubber banded end.

Popsicle Stick Catapult Picture 5

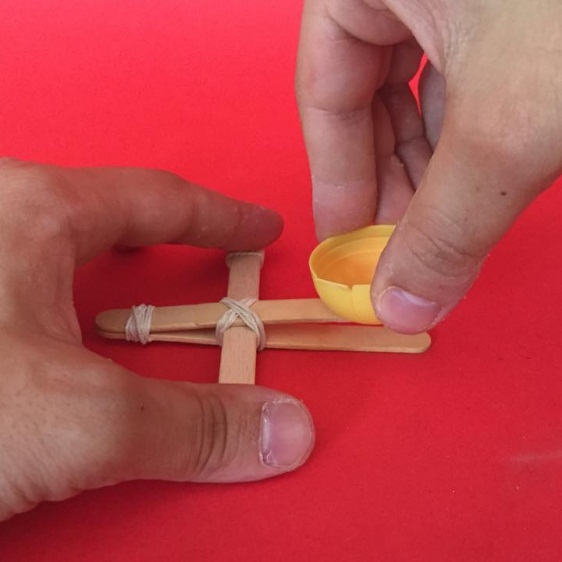

  1. Push the small container into the glue. Wait for some time until the glue dries.

Popsicle Stick Catapult Picture 6

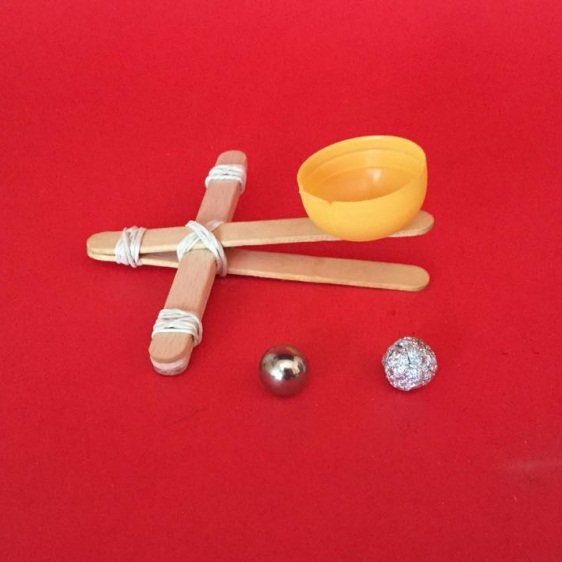

  1. Your catapult is now ready. Place small steel balls or balls made out of aluminium foil in the container, hold the catapult with one hand and use your other hand to press the container down. Release the pressure to shoot.

Popsicle Stick Catapult Picture 7

You can adjust the distance of the shot by setting the popsicle stick trio forward or backward in the gap. The shooting power can be altered by pressing harder or lighter on the uppermost popsicle stick.

An alternative to steps 5 to 7 would be to tie a plastic spoon to the upper popsicle stick with the help of a rubber band. Place a pom pom or aluminium foil roll on the spoon and shoot.

Popsicle Stick Catapult With Spoon

Popsicle Stick Catapult With Spoon

Building a Simple Catapult with Popsicle Sticks: Video

Physics Behind a Mini Popsicle Stick Catapult

The catapult behaves as a lever. It involves moving a load, a steel ball or aluminium foil roll in this case, around a fulcrum or a pivot. The pivoting action is provided by the last junction made by the rubber band on your popsicle sticks, as described in the process above. The force required for the triggering action is provided by your hand pulling back on the spoon or plastic container as the case may be.

Catapults also apply the principle of conservation of energy. Potential energy gets stored in the rubber bands every time they are stretched. Even the flexing and bending of the wooden levers cause the catapult to gain potential energy. As soon as you release the plastic spoon, then all the stored energy gets converted into kinetic energy that hurls the ball through long distances. The higher the potential energy, longer is the distance that the projectile will fly.

DIY Popsicle Stick Catapult Design Ideas for Kids

Toy Popsicle Stick Catapult

Toy Popsicle Stick Catapult

Small Popsicle Stick Catapult

Small Popsicle Stick Catapult

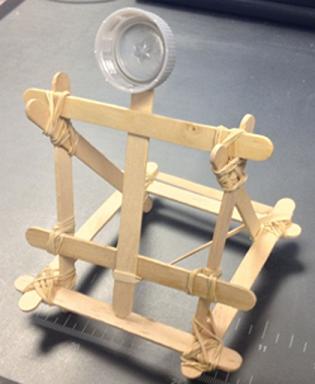

Easy Popsicle Stick Catapult Design

Easy Popsicle Stick Catapult Design

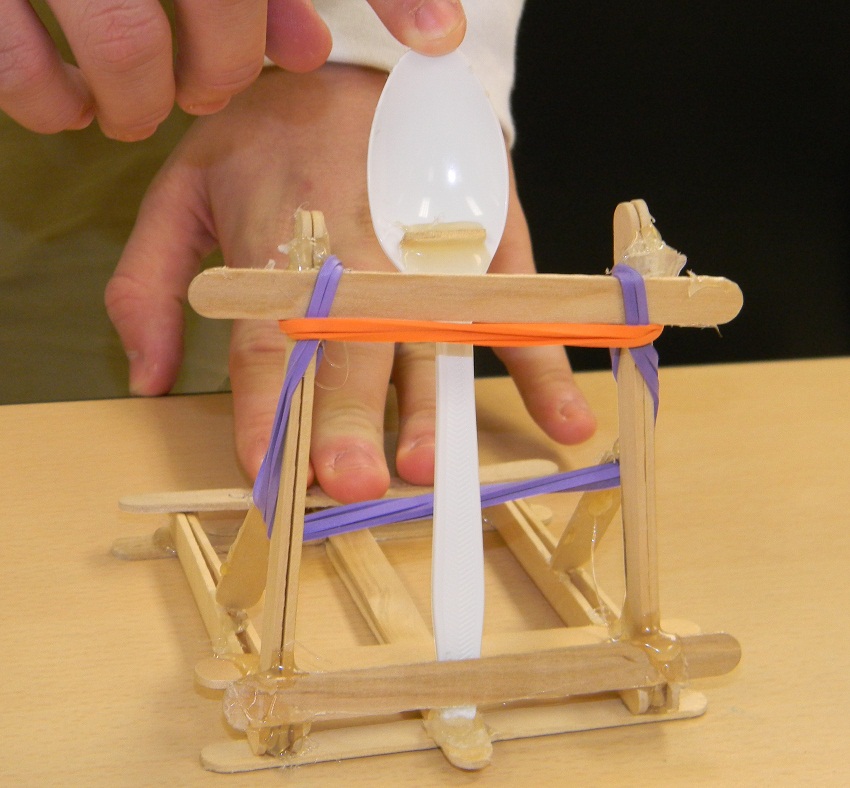

Simple Popsicle Stick Catapult

Simple Popsicle Stick Catapult

Hope you have a wonderful time while working on this. You can get kids easily engaged in this interesting project. It can also come in handy while trying to make high school students grasp the concepts of projectile motion.
